● RS485 communication interface
● Designed specifically for the power supply management of server in the data center
● Including 2 incoming line circuit and 36 outgoing line circuit
● U, I, P, Q, S, PF, kWh, kvarh
● Optional 2nd-15th harmonic
Overview

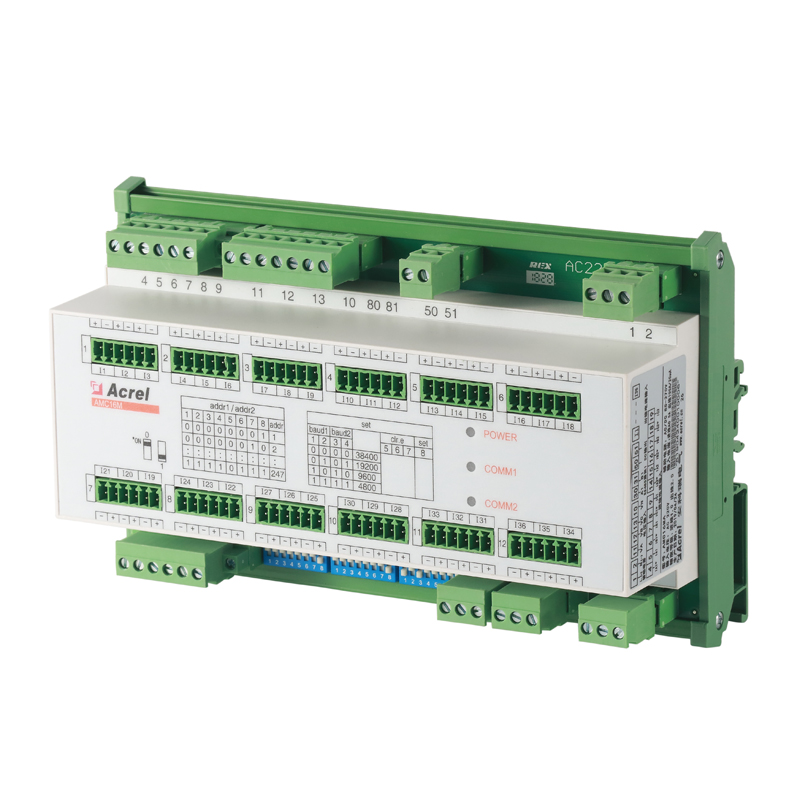

AMC16MA AC multi circuit energy meter is a measuring device designed specifically for the power supply management of server in the data center. Such device is small and exquisite in design, capable of centralized monitoring on electric parameters and on-off states of dozens of circuits, including incoming line circuit and outgoing line circuit, and it achieves the highly integration of monitoring circuits in volume.

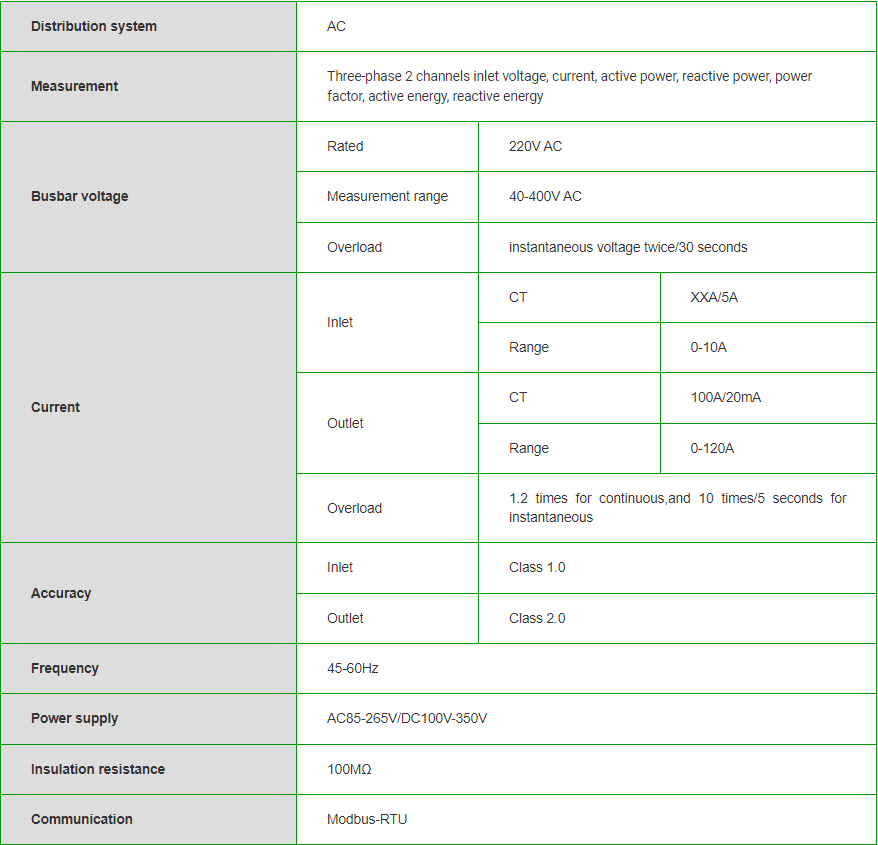

| *Three-phase 2 channels inlet voltage, current, active power, reactive power, power factor, active energy, reactive energy *Single-phase 36 channels outlet (Three-phase 12 channels outlet) voltage, current, active power, reactive power, power factor, active energy, reactive energy *1 on-off output *2 RS485 communication *Optional 2nd-15th harmonic |

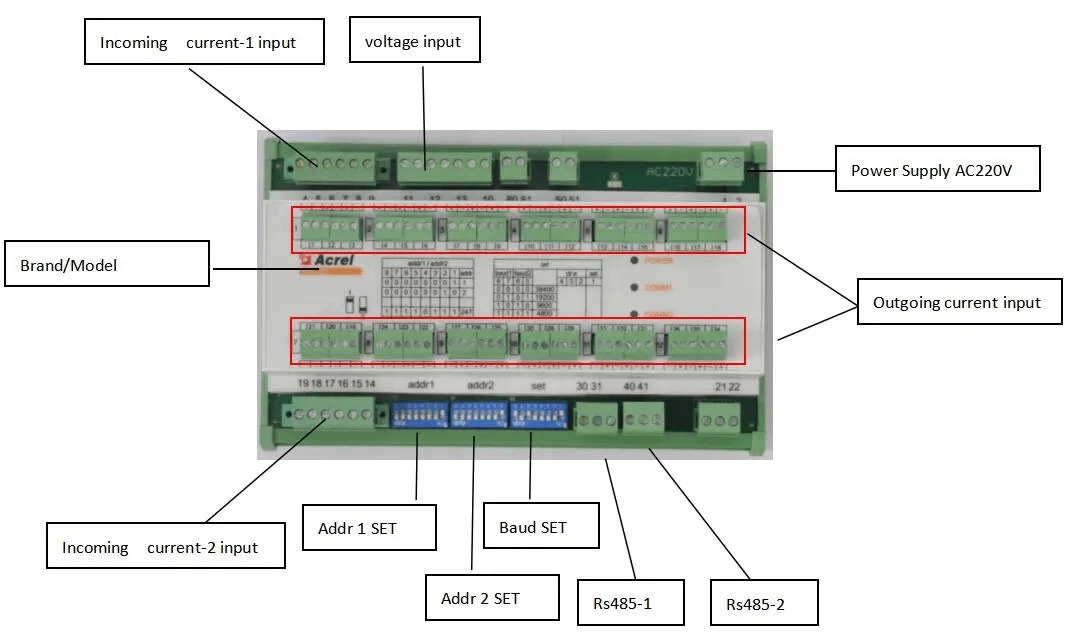

Wiring

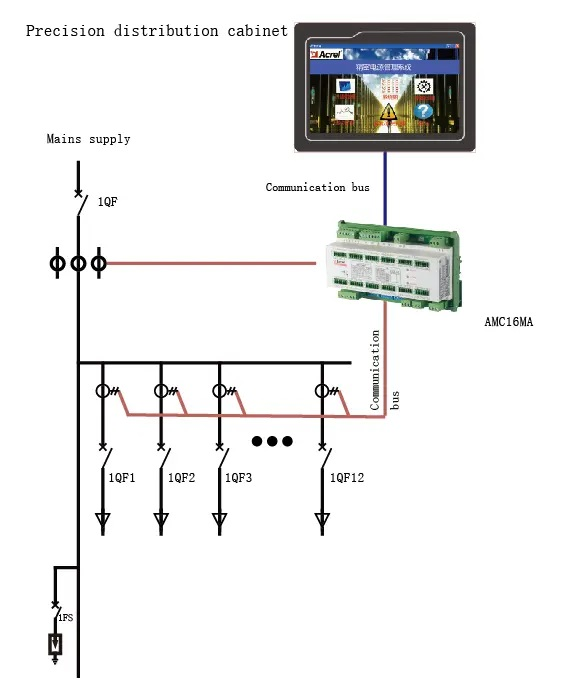

Site Installation
