● Input: PT100
● Output: 4-20mA
● Powered by output
● 35mm Din rail installation

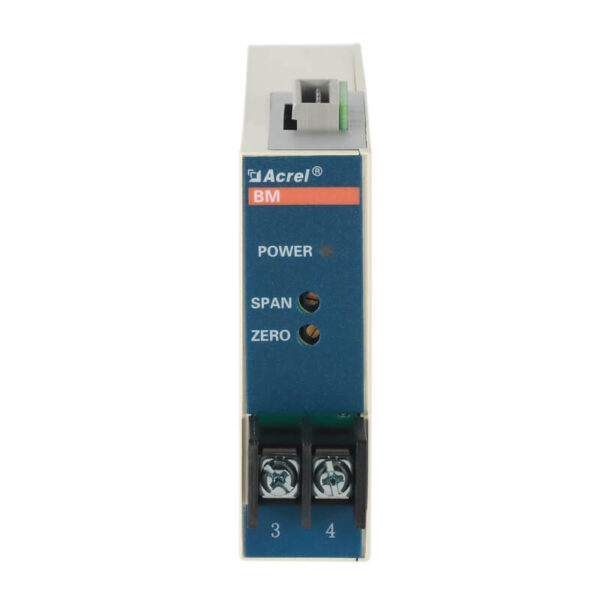

Overview
Analogue signal transducer BM series can measure electrical parameters (e.g. current and voltage) and non-electrical parameters (e.g. temperature and resistance) rapidly and accurately and isolate and convert measured values to standard analogue output signal. It can be not only connected directly with pointer gauges and digital display meters but also integrated with automatic control instruments (e.g. PLC), various A/D converters and computer systems.Features
Dimension
Structure
| Technical parameters | Index | |
| Input | Range | AC 0 ~1A or AC 0 ~5A |
| Impedance | 0.01Ω | |
| Max. input | 1.2 times continuously; 10 times for 1s transiently | |
| Output | Range | DC4-20mA |
| Load | ≤500Ω | |
| Zero adjustment | 5% | |
| Span adjustment | 5% | |
| Protection | Short circuit protection | |
| Power supply | Range | 8.5-40VDC, normally 24VDC/2W |
| Max. current | 24mA | |
| Other | Accuracy/linearity | Max. 0.5% of full span |
| Temperature effect | ≤200ppm/℃ | |
| Response time | ≤400ms | |
| Isolation voltage | 2kV between input and output | |
| Operating/storage temperature | -10℃ ~+55℃/-25 ~+70℃ | |
