● Auxiliary power supply to AID series
● AC 220V input, DC 24V output
● Completely Isolated Linear Transformer
● Power-on indicator
Overview

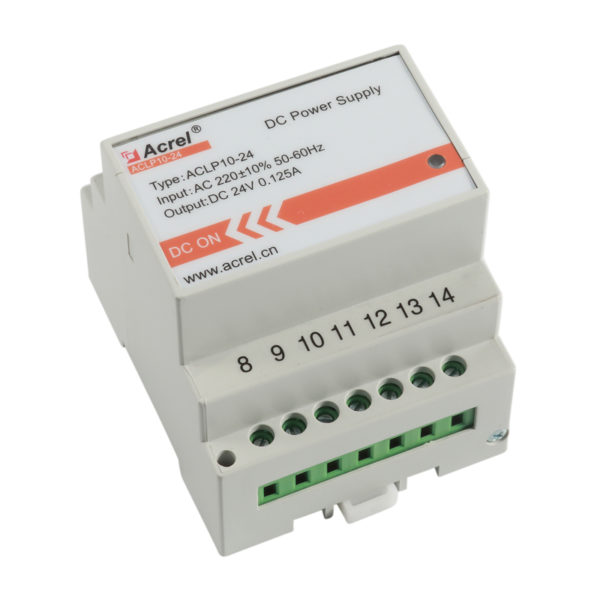

ACLP10-24 Auxiliary power supply is designed to supply Acrel AID series devices with a supply voltage of DC 24V and a total power consumption of maximum 3VA. Module is rail mounted, installed on the same rail as insulation monitors.Dimension
Wiring

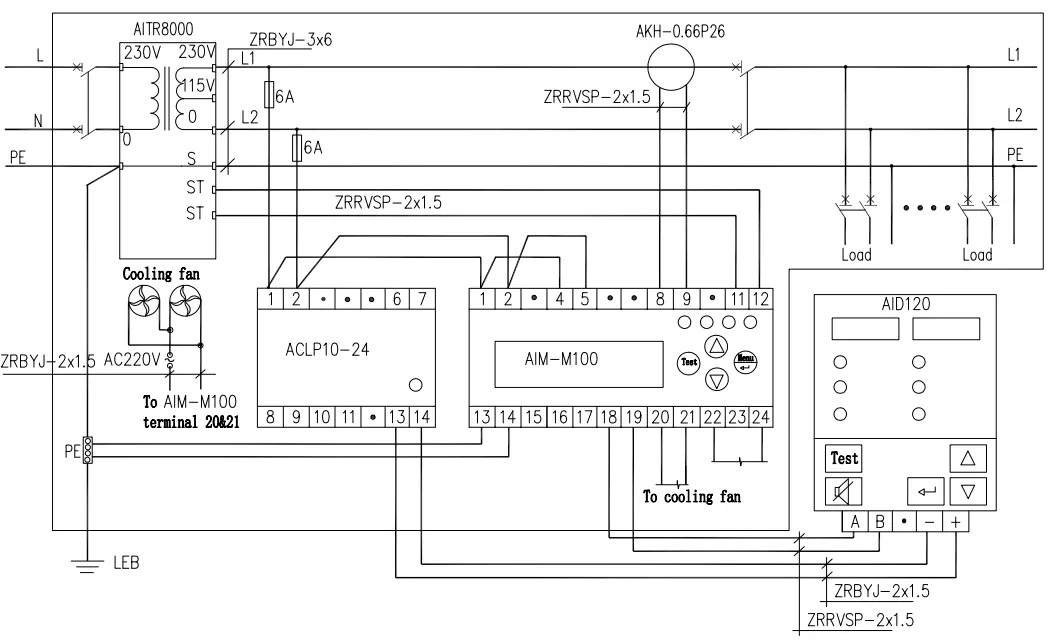

Typical Connection
Model Selection
Application programme－ICU/CCU
Typical Connection
| Auxiliary power supply | Voltage | AC220V (±10%) | Temperature measurement | Thermistor | Pt100 |
| Frequency | 50/60Hz | Measuring range | -50~+200℃ | ||
| power consumption | <8W | Alarm value scope | 0~+200℃ | ||
| Insulation monitoring | Range of insulation resistance | 10~999kΩ | Alarm output | Output mode | 2-route relay output (optional) |
| Absolute percentage | 0~±10% | Contact capacity | AC 250V/3A;DC 30V/3A | ||
| Alarm value scope | 50~999kΩ | Environment | Operating temperature | -10~+55℃ | |
| Response time | <2s | Storage temperature | -20~+70℃ | ||
| Measuring voltage | <12V | Relative humidity | 5%~95%, non-condensate | ||
| Measuring current | <50uA | Altitude | ≤2500m | ||
| Load current | Measuring range | 2.1~50A | Communication | RS485, Modbus-RTU | |
| Alarm value scope | 5~50A | Rated impulse voltage/ Pollution degree | 4KV/Ⅲ | ||
| Measuring accuracy | ≤±5% | EMC electromagnetic compatibility/ Electromagnetic radiation | Conform to IEC 61326-2-4 | ||
