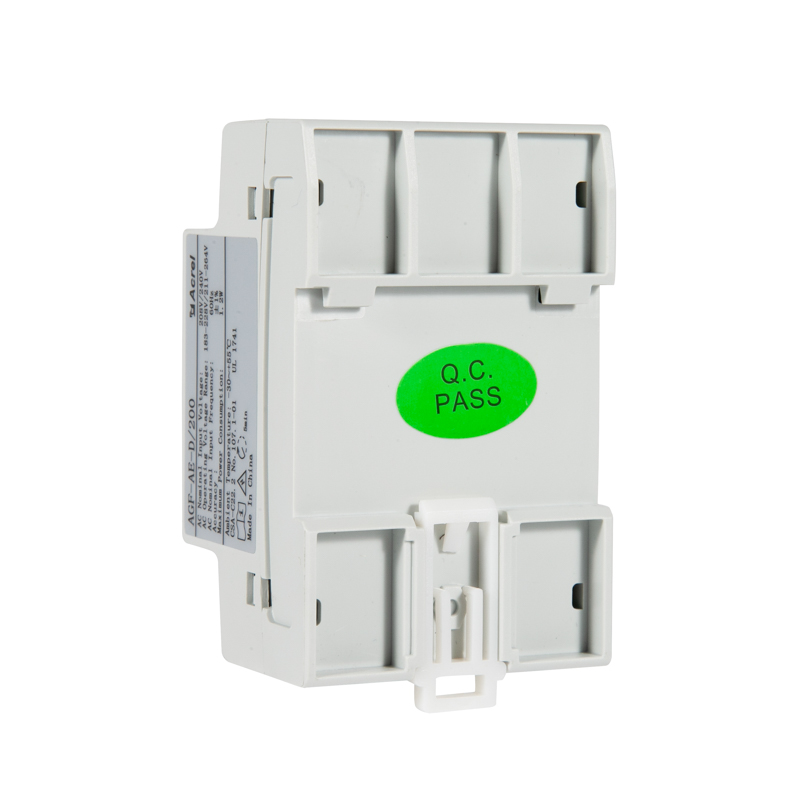

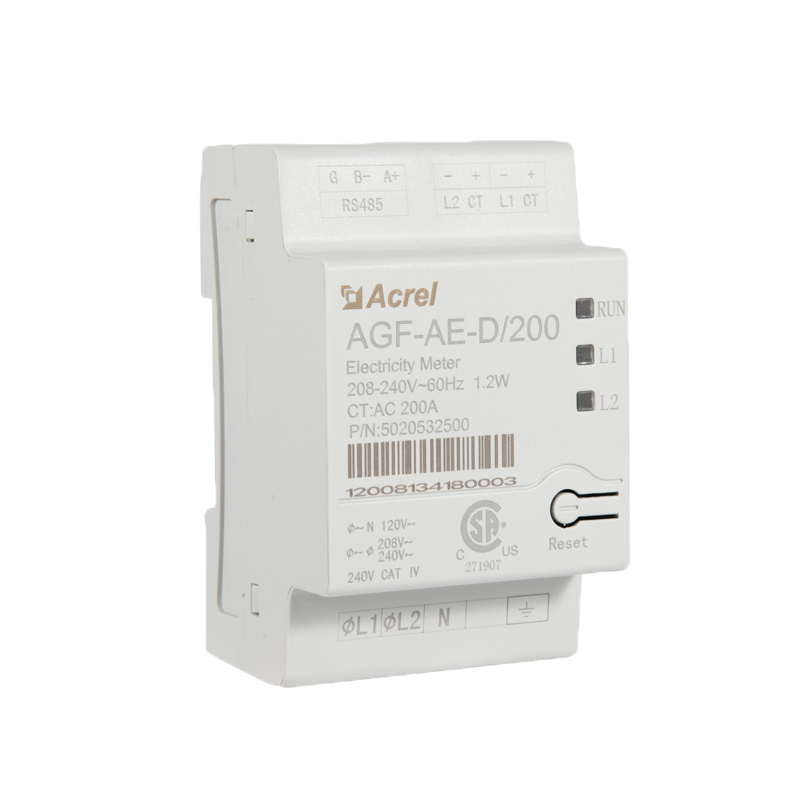

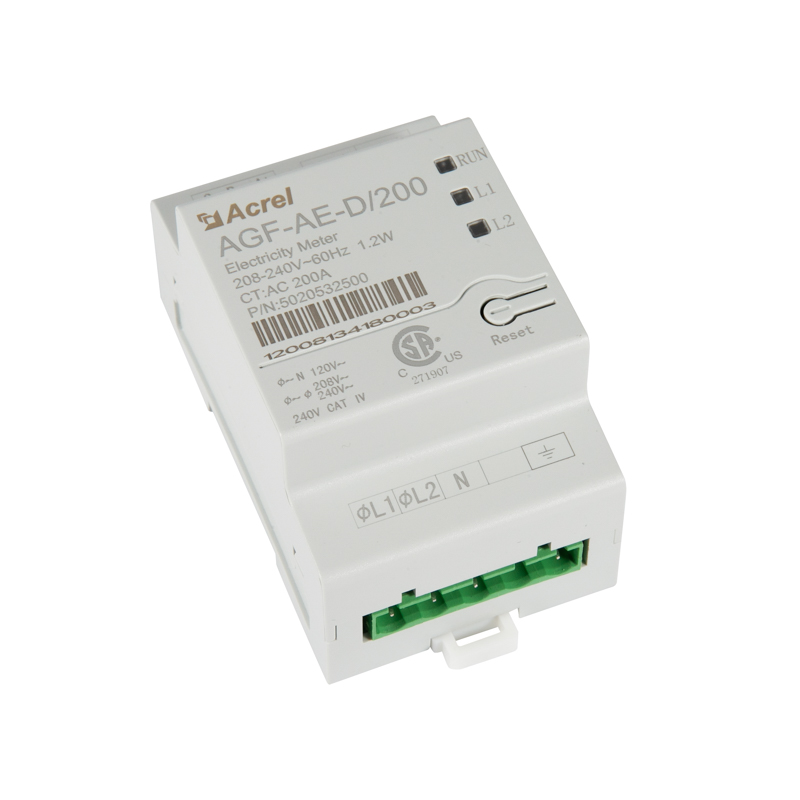

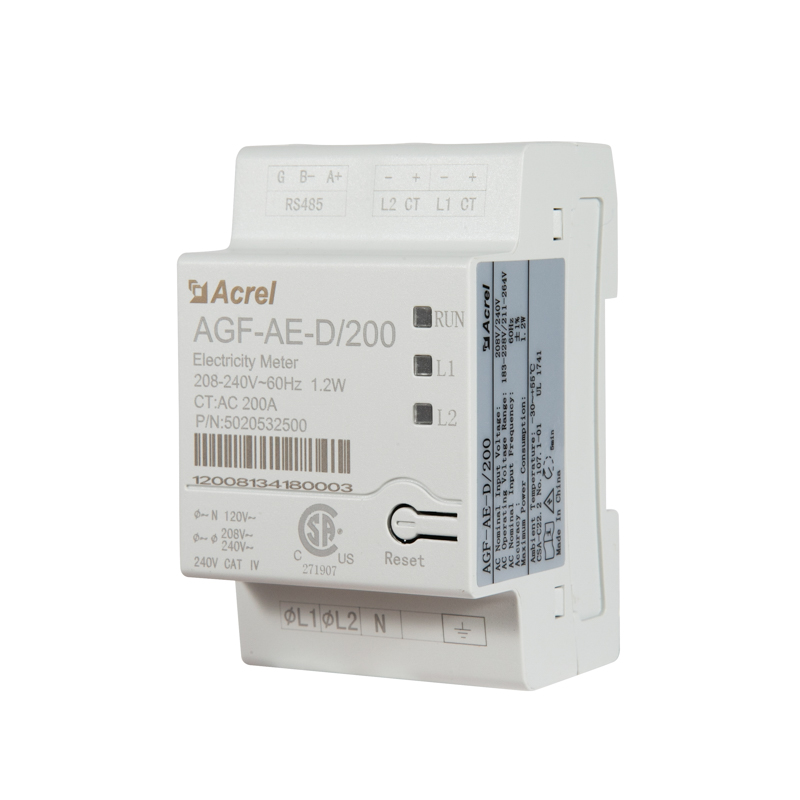

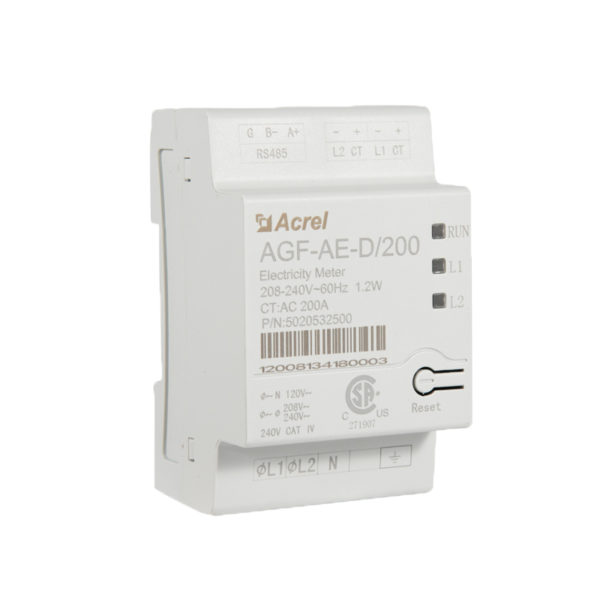

● Measurement: Active Powr, Reactive Power, Current, Voltage and etc

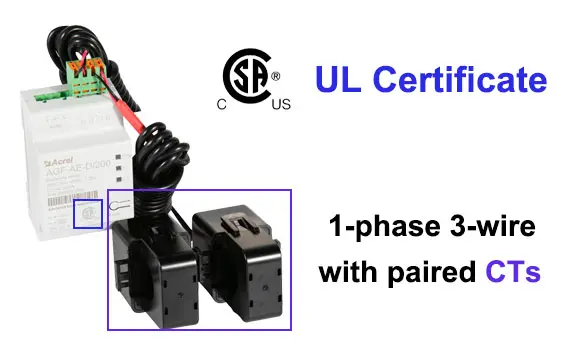

● Wiring: 1-phase 3-wire Connection
● Current Rating: 100A or 200A AC (paired with external CTs)
● Communication: RS485 (MODBUS-RTU)
● Application: Using in distributed Solar PV and Anti-reflux Inverters
● Dimension: 54.1*87.8*52mm (H*W*D)
● Installation: 35mm DIN Rail
● Standard&Certificate: UL1741;TUV
Overview
In a single inverter system, the meter is connected directly to the inverter. If your inverter has a built-in revenue grade meter (RGM; the inverter is referred to a revenue grade inverter), you can connect an external meter on the same bus as the RGM.Features

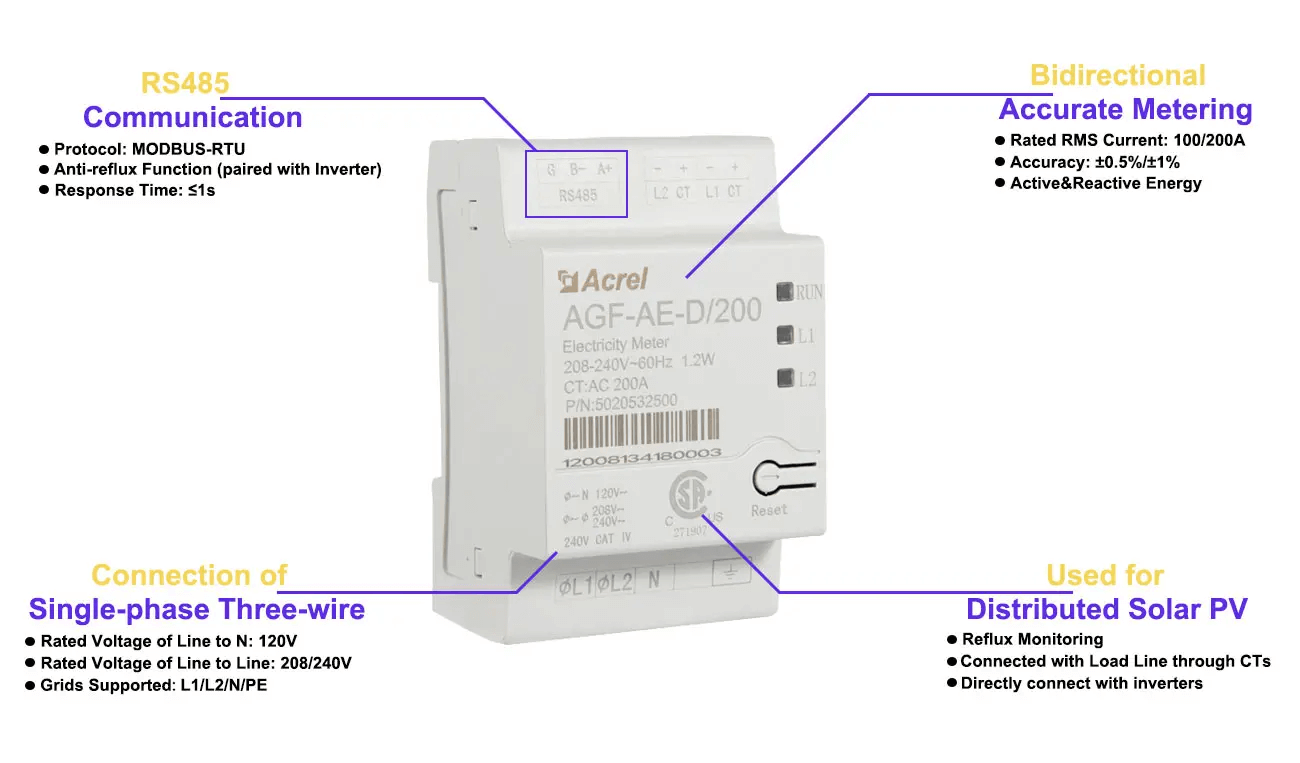

Used for distributed Solar PV ● Reflux Monitoring ● Connected with Load Line through CTs ● Directly connect with inverters |  |
Single-phase Three-wire Connection ● Rated Voltage of Line to N: 120V ● Rated Voltage of Line to Line: 208/240V ● Grids Supported： L1/L2/N/PE |  |
RS485 Communication ● MODBUS-RTU Protocol ● Communicate with Inverter to realize anti-reflux Function ● Response Time: ≤1s |  |

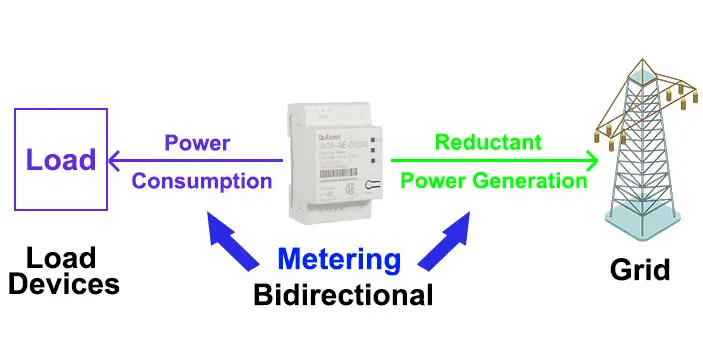

Bidirectional Metering ● Active&Reactive Energy Metering ● Rated RMS Current: 100/200A ● Accuracy: ±0.5%/±1% |  |

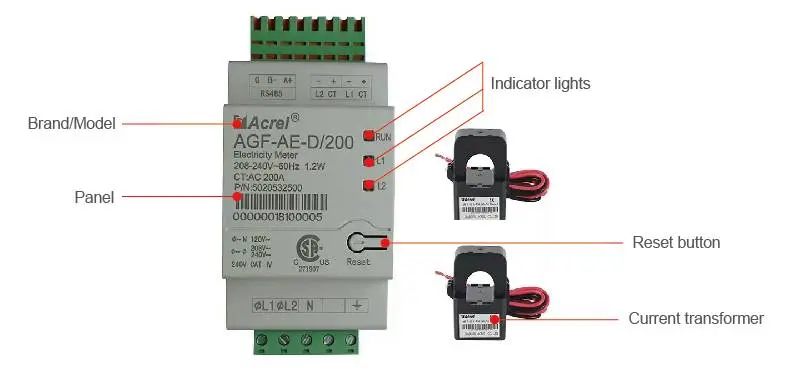

Display Sample

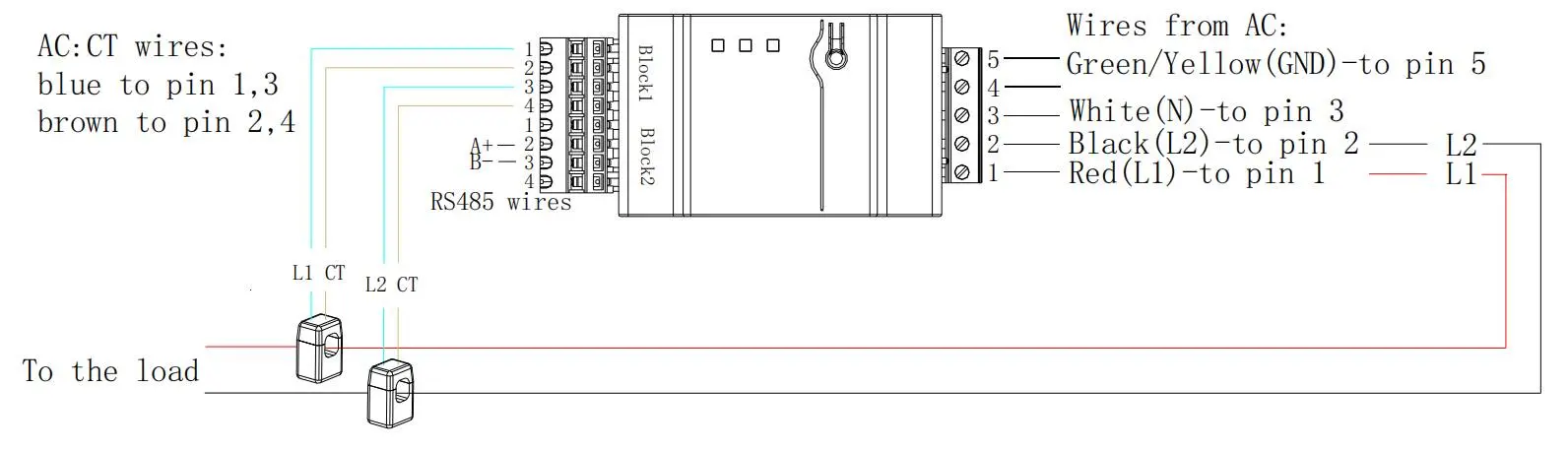

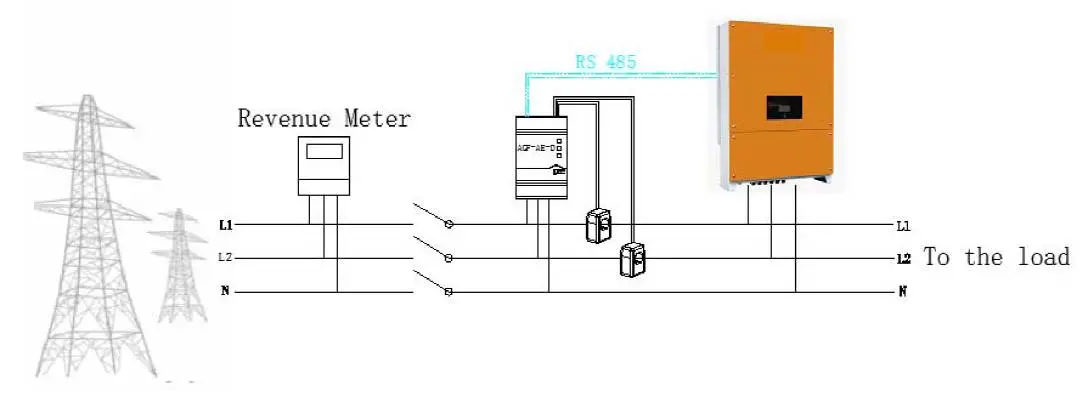

Wiring Illustration

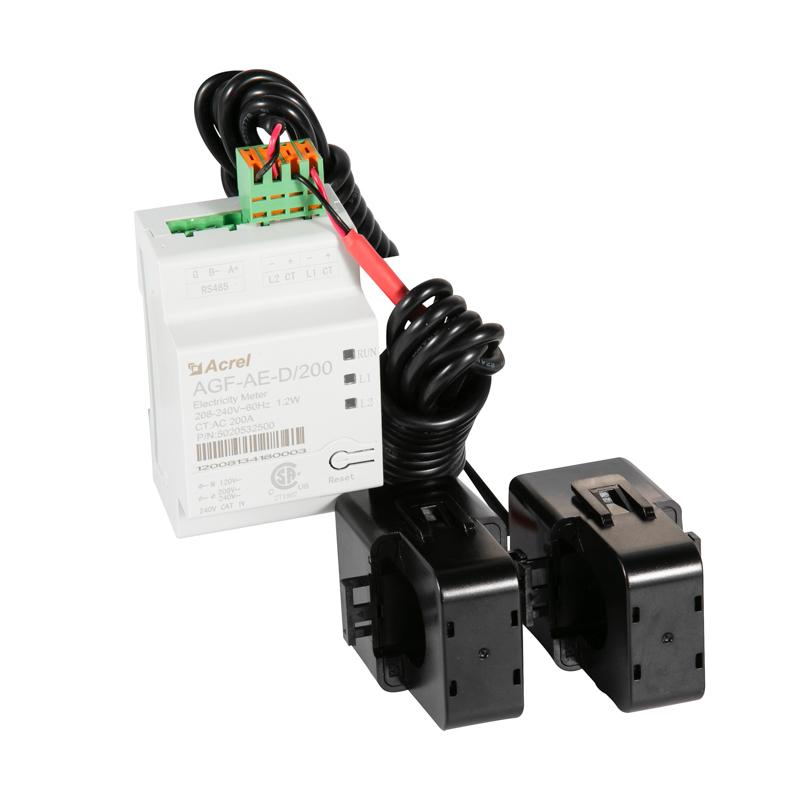

Connected with Load Line through CTs

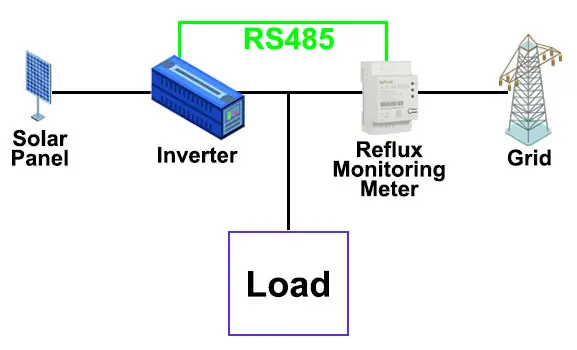

Directly connect with inverter
Practical Application

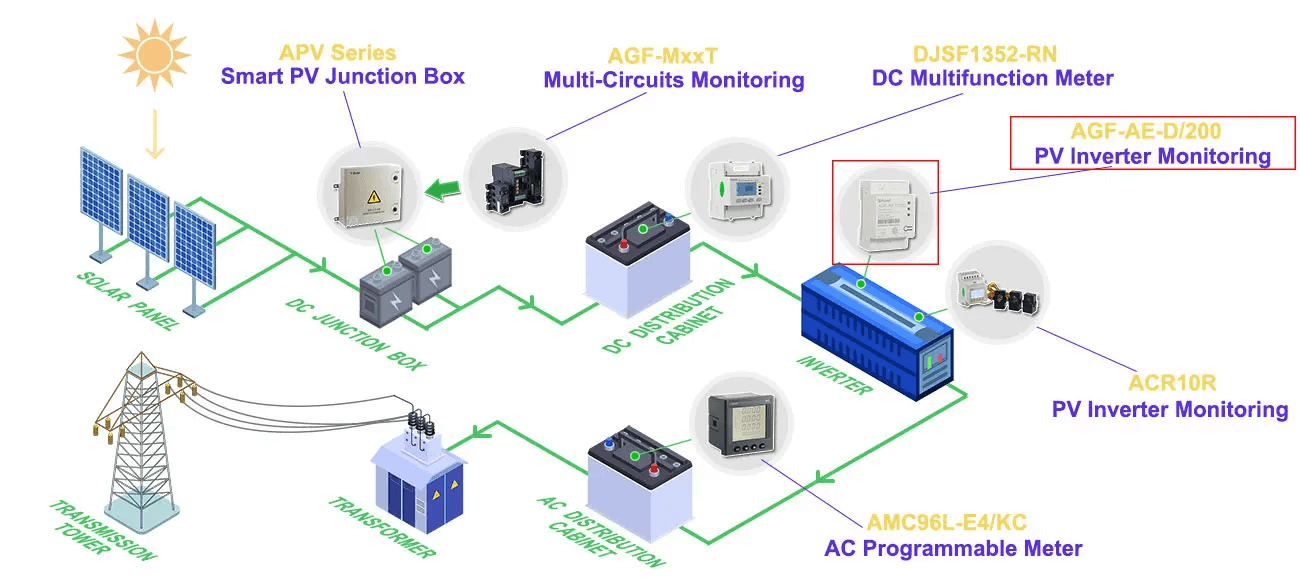

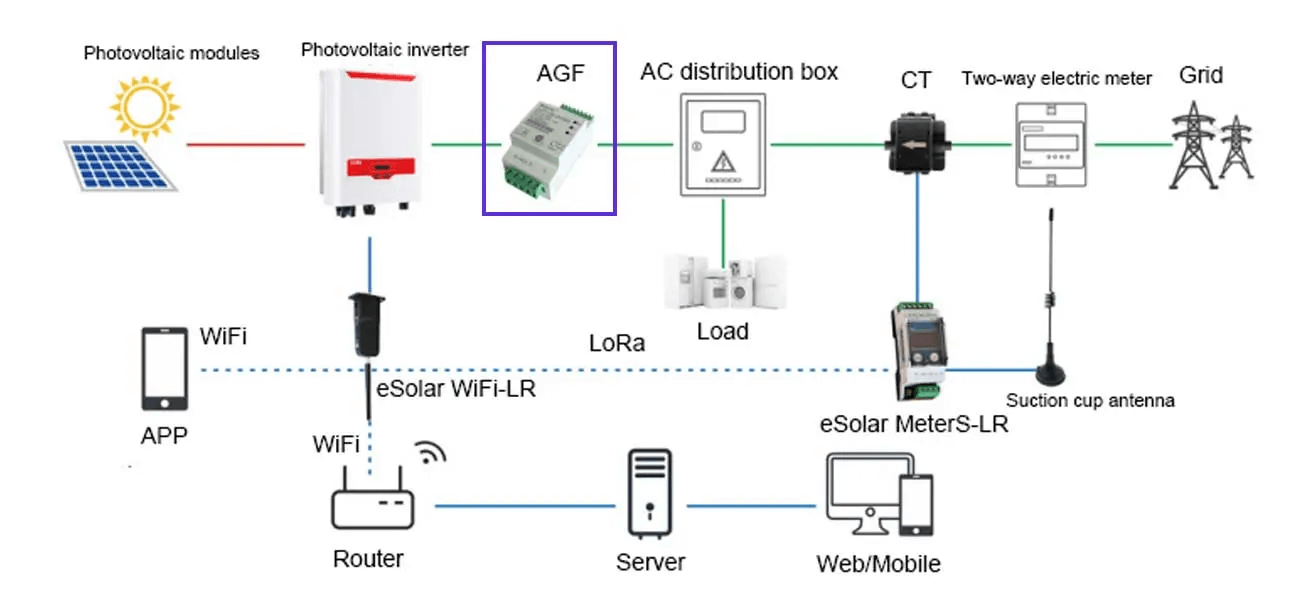

Solor PV Power Distribution Monitoring Solution

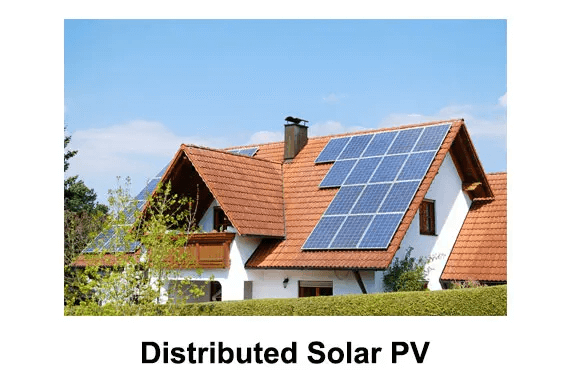

AGF-AE-D Practical Utility In Distributed Solar PV
| Meter Electrical Service | Units | ||
| AGF-AE-D/100 | AGF-AE-D/200 | ||
| Rated Voltage-Line to N | 120 | V | |
| Rated Voltage-Line to Line | 208/240 | V | |
| Extended Voltage Range | 88%~110% | ||
| AC Frequency | 60 | Hz | |
| Grids Supported | L1/L2/N/PE | ||
| Power Consumption | 1.2 | W | |
| Communication | |||
| Meter Communication Interfaces | RS 485 | ||
| Response Time | ≤1 | S | |
| Meter Accuracy | |||
| Rated RMS current | 100 | 200 | A |
| 1%-100% of CT Current | ±0.5 | ±1 | % |
| Current Transformers | |||
| Number of Supplied Current Transformers | 2 | ||
| Dimensions | I.D:15 O.D:35 | 70.5×54.5×39 (H×W×D) | mm |
| Standard Compliance | |||
| Safety | UL1741 | ||
| Installation Specifications | |||
| Dimensions(H×W×D) | 54.1×87.8×52 | mm | |
| Weight | 0.2 | kg | |
| Operating Temperature Range | -30~55 | ℃ | |
| Relative Humidity (noncondensing) | 5 – 90 | % | |
| Mounting Type | DIN-Rail，35mm | ||

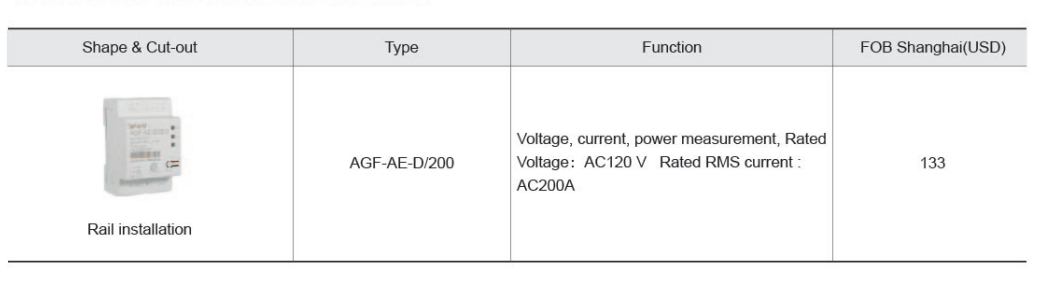

Note: Due to special Usage of this Product, Please Contact us for your Product Selection&Best Quotation !!!
