● Isolating transformers for medical IT systems
● Double insulation treatment, Electrostatic shielding layer
● PT100 temperature sensor
● Rated power: 3.15…10KVA
Overview
AITR series isolation transformer is specially used in medical IT system. The transformer core is made of silicon steel sheet, the loss is small. Double insulation treatment is adopted between windings, and a static screen is designed to reduce the electromagnetic interference between the two windings. PT100 temperature sensor is installed in the winding, which can be used to monitor the winding temperature. The transformer is treated by vacuum impregnation, which increases the mechanical strength and has anti-corrosion effect. In addition, the product also uses low temperature rise and low noise design, so that it has good temperature rise performance and low noiseFeatures
Dimension
Wiring

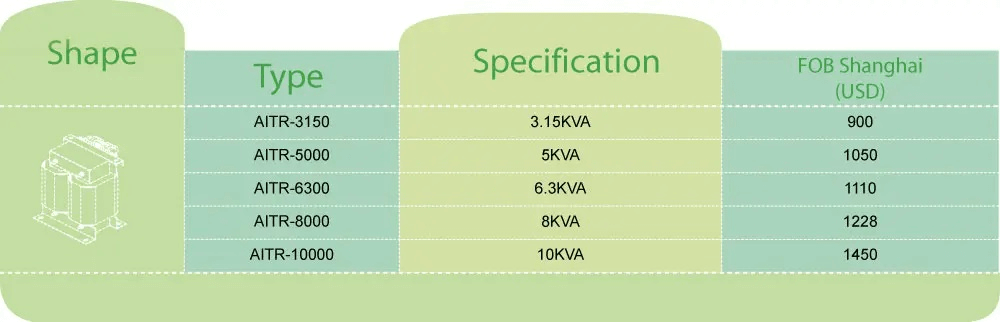

Model Selection
we supply full products of this cabinet from current transformers, meters to cabinets.
Application programme－ICU/CCU
Typical Connection
| Rated capacity | 3.15kVA/5kVA/6.3kVA/8kVA/10kVA |
| Frequency | 50/60Hz |
| Rated input voltage Rated output voltage | 230V 230V/115V |
| (IE) Inrush current | <12h |
| Leakage current | <200uA |
| (UO) No-load output voltage | <235\/ |
| (IO) No-load output current | <3% In |
| Short-circuit voltage | <3%Un |
| Efficiency | >96% |
| Maximum ambient temperature | <40℃ |
| No-load temperature rise | <33℃ |
| Full load temperature rise | <76℃ |
| Withstand voltage | 4200V/Min |
| Insulation class | H |
| Noise level | <40dB(A) |
