● Remote monitoring
● Mute button
● Test button
● Auxiliary power supply: DC24V
● RS485(MODBUS-RTU)
Overview

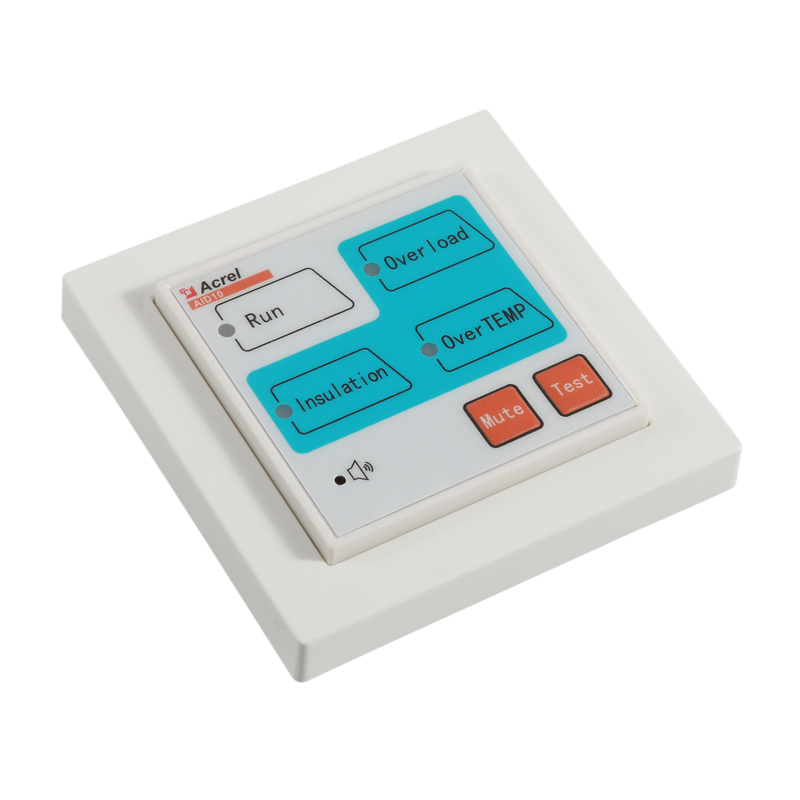

AID series alarm and display indicator are remote display and audible and visible alarm devices. AID duplicates fault, alarm and operating message of monitoring devices. When fault occurs, AID gives audible and visible signal to medical staff and technical staff. Additionally, response value of AIM-M series monitoring device can be set by AID remotely. AID Series alarm and display device have three types: AID10, AID120 and AID150, which shall be arranged in operating room or nursing station so that it can be permanently monitored by medical staff.Dimension
 |  |
Installation
Typical Connection
Model Selection
Application programme－ICU/CCU
Typical Connection
| Parameter Type | AID10 | AID150 | |
| Auxiliary power supply | Voltage | DC 24V | |
| Consumption | < 0.6W | ||
| Insulation alarming range | —— | 14A, 18A, 22A, 28A, 35A, 45A | |
| Temperature alarm setting range | —— | 0~+200℃ | |
| Number of monitored systems | 1 | 16 | |
| Alarm method | Sound-light alarm | ||
| Alarm type | Insulation failure, overload, overheat, equipment failure | ||
| Communication mode | RS485, Modbus-RTU | ||
| Display mode | LED display | 128×64 LCD display | |
