● Measurement: 1-phase Active Power, Reactive Power, Current, Voltage and etc
● Current Rating: up to 300A (paired with external CTs)
● Communication: RS485 (MODBUS-RTU)
● Application: Using in distributed Solar PV and Anti-reflux Inverter
● Display: LCD Dispaly
● Dimension: 54*74*85mm (L*W*H)
● Installation: 35mm DIN Rail
● Power Supply: 85~265V AC or 100~350V DC
● Standard&Certificate: CE
Overview

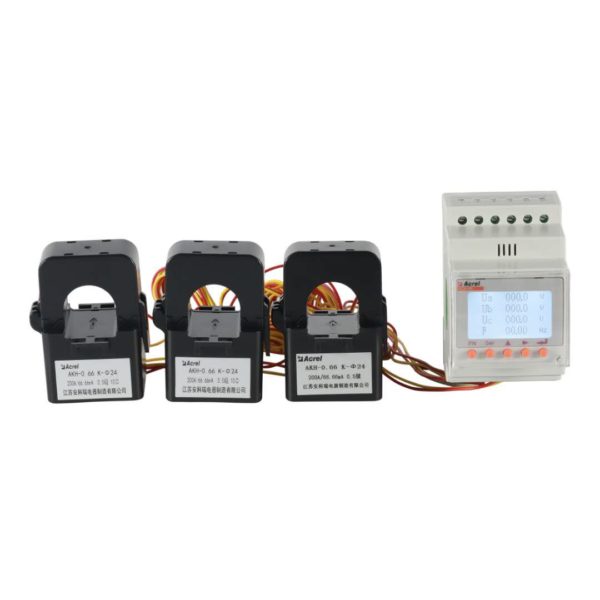

The rail-type multifunction electrical instrument with external Rogowski coil and split-core current transformer is applicable for the energy-saving reconstruction project in high energy consumption industries including the smelting, iron and steel, welding and semi-conductor industry. It is also suitable for applications such as the power monitoring of grid-connected cabinet for distributed photovoltaic power cabinet and energy demand management. It boasts of no need of bus removal, easy connection and safe construction, saving reconstruction cost and raising efficiency for the user. It integrates the measurements of all electric parameters (including single-phase or three-phase current, voltage, active power, reactive power, apparent power, frequency and power factor ） and comprehensive energy monitoring and examination management. Meanwhile, it also has various peripheral interfaces for the user to choose: the RS485 communication interface with MODBUS-RTU protocol can meet the need of online communication management; the interfaces with switch input and relay output can realize the remote signalling and remote control of the circuit breaker switch. It is very suitable for real-time power monitoring system with an LCD display and the panel buttons to realize the setting and control of parameters.Features
Used for distributed Solar PV ●Reflux Monitoring ● Harmonic Monitoring |  |
| Bidirectional Metering● Active Energy Metering● Reactive Energy Metering |  |
| RS485 Communication● MODBUS-RTU Protocol● Communicate with Inverter to realize anti-reflux Function |  |
| Single-phase Two-Wire Connection● Paired with external split core CT● Rated Voltage: AC 100V, 400V |  |
| LCD Display● Parameter Display● Programming Interface |  |
| Keypads HMI for Programming● Parameter Display Setting● Communication(address, baud rate and etc.) |  |
Display Sample
Practical Application

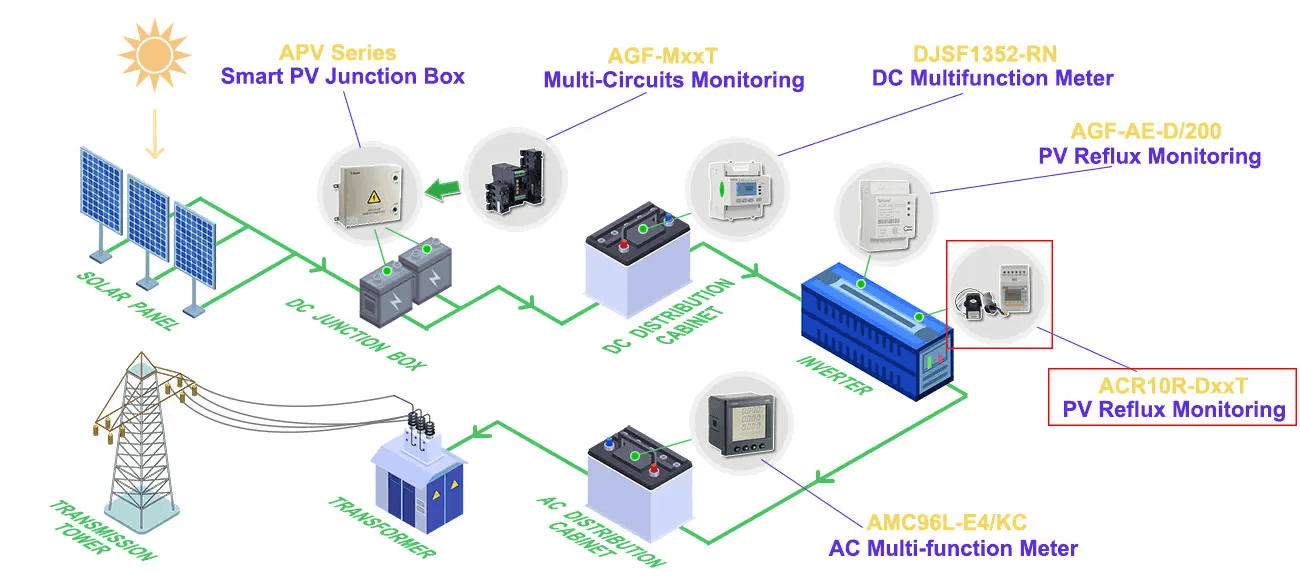

Solor PV Power Distribution Monitoring Solution
| Technical parameters | Indicators | ||
| Input | Grid | Three-phase | |
| Frequency | 45～65Hz | ||
| Voltage | Rated voltage: AC 100V, 400V | ||
| Overload: 1.2 times the rated voltage(continuous); 2 times the rated voltage lasting for 1 second | |||
| Power consumption: less then 0.2VA | |||
| Current | Rated current: 10A，20A，40A，80A，120A，200A etc. (for details see product specifications) | ||
| Overload: 1.2 times the rated current(continuous);10 times the rated current lasting for 1 second | |||
| Power consumption: less then 0.2VA | |||
| Output | Communication | RS485 interface, Modbus-RTU | |
| Display | LCD | ||
| Measurement precision | Voltage: 0.2 level, current, power Active energy: 0.5 level,0.01Hz frequency, Reactive energy: 1 level | ||
| Power supply | AC85～265V or DC100～350V; power consumption ≤10VA | ||
| Safety | Power frequency withstand voltage | AC2kV 1 min between power supply // current input//voltage input and communicationAC2kV 1 min between each pair of combinations among power supply, urrent input and voltage input. | |
| Insulating resistor | Input,output terminal to housing >100MΩ | ||
| Environment | Working temperature: -10℃～+55℃;storage temperature: -20℃～+70℃Relative humidity:5%～95%，non-condensing; altitude:≤2500m | ||
