Thescenario is based on a small on-grid Solar PV system without DC energy
Thepurpose was to online monitor all common electricity parameters for each solar panel string to check their working efficiency and status for maintanance.
Forsite situation, suppose we have 3 inverters, 48 solar panel strings 576 solar panels in For each solar panel string consisted of 12 solar panels and connect to a general DC circuit for power distribution. We will target this DC circuit for monitoring. [Rated current 12A DC, rated voltage 600Vdc]. Also, each inverter connect to 16 solar panel strings.
Forthe places that we gonna install the energy meter and IoT gateway, they are covered by stable 4G signal.
Devices Deployment Plan
Inverter#1~SolarPanelString#1~161* AWT100-4GHW IoT 4G Gateway [for 4G data stream of AGF-M16T/L-P2 to end IoT System]
1* AWT100-POW Power Supply Module [for 85~265Vac/Vdc power supply of AWT100-4GHW]
1* AGF-M16T/L-P2 Multi-circuit DC Energy Meter [For monitor Solar Panel Sring #1~16] Inverter #3 ~ Solar Panel String #33~481*AWT100-4GHW IoT 4G Gateway [for 4G data stream of AGF-M16T/L-P2 to end IoT System]1*AWT100-POW Power Supply Module [for 85~265Vac/Vdc power supply of AWT100-4GHW]1*AGF-M16T/L-P2 Multi-circuit DC Energy Meter [For monitor Solar Panel Sring #33~48]
CommunicationStructure&Logic
(1)4G Communication could be served as one of the final data upstream methods by sending the data to cloud server deployed in Internet so that Acrel IoT System could be interact with these data collected by bottom metering devices like Energy Meter
(2)AWT100-4GHW gateway support upstream of 4G communication with MQTT and MODBUS- protocol and downstream of RS485 communication based on MODBUS-RTU protocol. AGF-M16T support upstream communication of RS485 communication based on MODBUS-RTU protocol.
(3)Based on the communication described in item (2), Acrel AWT100-4GHW gateway could receive the data from ADL200/C energy meter using RS485 communication while sending the data further to cloud server using 4G upstream communication. Thus accomplish a complete communication from bottom metering devices to top system software. Hardware Devices Overview [Energy Meter & Paired IoT Gateway]Model1:AWT100-4GHWIoT4GSmartGateway
Upstream: 4G LTE [MQTT, MODBUS Protocol]
Downstream: RS485 [MODBUS-RTU Protocol]
Support:Up to 25 Downstream Devices via
AuxiliaryPower Supply: 85~265Vac [via AWT100-POW]
Certificate&Standard:CE; CE-RED; IEC
More Introduciton:Acrel IoT Smart 4G Gateway AWT100-4GHW Model 2: AWT100-POW Power Supply Module
Input: 85~265Vac
Output: 12Vdc
Application: Paired with AWT100-4GHW for 85~265Vac Power Supply Input [via PIN L & PIN N]
Certificate&Standard: CE
(1)This Quotation doesn’t include freight charge. To gain a complete quotation, please refer the actual quantity that you want to request for the actual order, once we receiving it. We will issue a Official Proforma Invoice with Acrel Stamps on it for later procedure.
Acrel IoT Energy Monitoring System could be access in 2 different ways:
•Access through WEB on your computer.
Access port: https://iot.acrel-eem.com/
•Access through APP on your mobile phone
Download Link: https://play.google.com/store/apps/details?id=com.acrel.iotems WEB Accesss (Computer):
Access Port: https://iot.acrel-eem.com/ Test Account Name: acrel
Test Account Password: 123456 APP Accesss (Mobile): DownloadLink: https://play.google.com/store/apps/details?id=com.acrel. iotemsTest Account Name: acrelTest Account Password: 123456
Acrel IoT Energy Monitoring System (Partail Introduction)
Main Function of WEB side System:
SolarPV Monitoring (2) Devices List (3) History Curve (4) Electricity Parameters Report (5)
Energy Consumption Report (Daily, Monthly, Yearly) (6) User Report SolarPanel String Monitoring: A visualization configuration mapping could be customized and bind the data with the site’s monitoring devices. Realize a visualization and digitalization of solar panel working status and efficiency. DevicesList: Showing the overall devices connected to Acrel System and were bond to certain SN code, Online-Offline status, devices model and other necessary information will be shown here. History Curve: Showing the daily history data curve of all the data that could be collected and uploadedby energy meter or other basic meteringAcrel IoT Energy Monitoring System (Partail Introduction)Main Function of WEB side System:
SolarPV Monitoring (2) Devices List (3) History Curve (4) Electricity Parameters Report (5)
Energy Consumption Report (Daily, Monthly, Yearly) (6) User Report

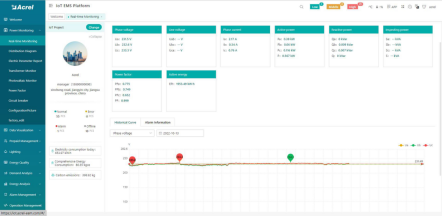

HistoryCurve: By selecting the items of “date” and “electricity parameter”, platform can show the history curve of different data and date.
-Electricity Parameters Report: All the electricity parameters that could be collected by certain energy meter will showed as a report here. Electricity Parameters Report: Report on platform could be exported in “Excel” format to your computer for a brief storage when accessing the IoT EMS WEB platform.Acrel IoT Energy Monitoring System (Partail Introduction)Main Function of WEB side System:
(1)Solar PV Monitoring (2) Devices List (3) History Curve (4) Electricity Parameters Report (5)
Energy Consumption Report (Daily, Monthly, Yearly) (6) User Report Energy Report (Daily): This Interface show the daily energy consumtion report (calculated by forward active energy)Energy Report (Daily): This daily energy report could be also export to computer in “Excel” formatEnergy Report (Monthly& Yearly): Same as daily energy report, monthly and yearly energy report could be also checked on platform and exported in “Excel” format.
Hardware Devices Overview [Energy Meter & Paired IoT Gateway]Model 1: AWT100-4GHW IoT 4G Smart Gateway
DevicesList: Showing the overall devices connected to Acrel System and were bond to certain SN code, Online-Offline status, devices model and other necessary information will be shown here.
History Curve: Showing the daily history data curve of all the data that could be collected and uploadedby energy meter or other basic metering
Acrel IoT Energy Monitoring System (Partail Introduction)Main Function of WEB side System:
-Electricity Parameters Report: All the electricity parameters that could be collected by certain energy meter will showed as a report here.
Electricity Parameters Report: Report on platform could be exported in “Excel” format to your computer for a brief storage when accessing the IoT EMS WEB platform.
Acrel IoT Energy Monitoring System (Partail Introduction)Main Function of WEB side System:
(1)Solar PV Monitoring (2) Devices List (3) History Curve (4) Electricity Parameters Report (5)
Energy Consumption Report (Daily, Monthly, Yearly) (6) User Report Energy Report (Daily): This Interface show the daily energy consumtion report (calculated by forward active energy)
Energy Report (Daily): This daily energy report could be also export to computer in “Excel” format
Energy Report (Monthly& Yearly): Same as daily energy report, monthly and yearly energy report could be also checked on platform and exported in “Excel” format.
